Nível de Entrada Nominal

- MIC IN: -40 dBu (MIC SENS = Center)

- GUITAR IN: -10 dBu

- AUX IN: -20 dBu

Impedância Entrada:

- MIC IN: 4 k ohms

- GUITAR IN: 20 M ohms

- AUX IN: 18 k ohms

Nível Saída Nominal

- LINE OUT L/MONO, R: -10 dBu

- XLR OUT L, R: -10 dBu (Vocal&Guitar, Guitar), -40 dBu (Vocal)

Impedância de Saída:

- LINE OUT L/MONO, R: 1 k ohm

- XLR OUT L, R: 600 ohms

- PHONES: 44 ohms Modo

- Manual

- Memoria (Memory change/stomp)

Slots de Memória: 50 Efeitos:

- [Parte Vocal]

- ENHANCE

- PITCH CORRECT

- HARMONY/FX: HIGH, HIGHER, HIGH&HIGHER, LOW, HIGH&LOW, DOUBLE, RADIO, DIST, ELECTRIC

- REVERB

- 3 BAND EQ, LOW CUT

- [Parte Guitarra]

- ACOUSTIC RESONANCE

- CHORUS/FX: CHORUS, TREMOLO, PHASER, DELAY, MOD DELAY, OCTAVE, SLOW GEAR, RING MOD

- REVERB

- 3 BAND EQ, LOW CUT

- NOTCH FILTER, PHASE

Phrase Loop: 80 sec

Display: 7 segments, 2 digits LED

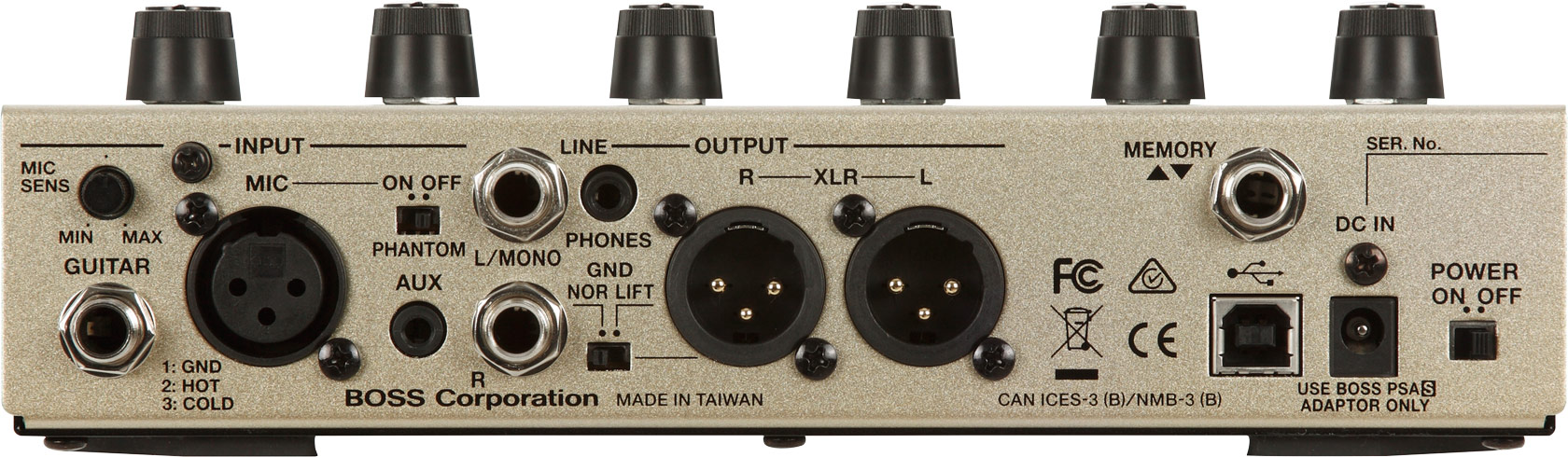

Conectores

- MIC IN connector: tipo XLR, balanceado, phantom power (DC 48 V, 10 mA Max)

- GUITAR IN jack: 1/4"

- AUX IN jack: Stereo 3.5mm

- XLR OUT L, R

- LINE OUT L/MONO, R jacks: 1/4"

- PHONES jack: Stereo 3.5mm

- MEMORY INC/DEC jack: 1/4" TRS

- Conector USB: USB type B

- DC IN jack Power Supply

- AC adaptor

- Alkaline battery (AA, LR6) x 6

Current Draw: 360 mA

Expected battery life under continuous use

Alkaline battery: Approx. 4.5 hours (phantom power: OFF), Approx. 2.5 hours (phantom power: ON)

*These figures will vary depending on the actual conditions of use. AC Adaptor

Options (sold separately):

- Footswitch: FS-5U

- Dual Footswitch: FS-6, FS-7
